Full Analysis of Cantilever Shelves: How to Choose More Efficient Storage for Long and Heavy Materials?

In industries such as mechanical processing, building materials, wood, and hardware, long rods, pipes, boards, and irregular materials have always been storage challenges: they are piled up haphazardly, difficult to find, slow to access, and take up space. To manage such goods neatly, efficiently, and safely, cantilevered shelves are almost the optimal solution.

As one of the top 3 manufacturers in China's warehousing and shelving industry with 20 years of industry experience, Kingmore Racking is deeply involved in the field of intelligent warehousing and logistics. It is not only a partner of well-known enterprises such as DHL, Mengniu, and KFC, but also has shelving products in over 100 countries and regions around the world. From the pallet shelving project with 40000 storage locations in Georgia, USA to the intelligent shuttle shelving project in Vietnam and Paraguay, its rich project experience makes the design and construction of cantilever shelving more in line with the actual warehousing needs of enterprises.

Many customers are most concerned about what it consists of, what it can hold, how much it can bear, how to adjust it, and which one is more suitable for me when consulting. In this article, we will explain the cantilevered shelves from a practical usage perspective.

1、 Basic structure of cantilever shelves: sturdy and durable, easy to disassemble and adjust

The standard cantilever shelf mainly consists of these parts:

Column: the core support for overall load-bearing

Base: Ensure the stability of the shelf and prevent it from tipping over easily

Cantilever beam: forward bearing, directly carrying goods

Octopus: Strengthen the connection strength between the cantilever and the column

Connecting rod: enhances overall rigidity and stability

The H-type cantilever shelf is centered around columns, cantilever beams, forks, and connecting rods, optimizing the load-bearing structure design. The overall structure is also simple and stable, and easy to disassemble and modify in the later stage, suitable for the long-term use needs of factories and warehouses.

2、 The core advantage of cantilever shelves: solving the pain points of long material storage

Compared to ordinary laminated shelves, the most prominent feature of cantilever shelves is:

The cantilever structure is lightweight and has strong load-bearing capacity

The forward extending design does not take up front space, but can easily carry long materials. The H-shaped model has a much greater load-bearing capacity than conventional rolled models, and can stably support heavy-duty pipes and large profiles.

Specially place irregular/long rod materials

Pipes, profiles, wood, boards, wires, and irregular components can all be stored neatly, fundamentally solving the problem of disorderly stacking of long materials.

Significantly improve warehouse utilization and work efficiency

Clear classification of goods, easy access at a glance, and quick operation of forklifts/manual labor, coupled with flexible layout design, significantly improves warehouse space utilization. This is also the core reason why many mechanical processing and building materials enterprises choose it.

Flexible combination with laminated boards, compatible with loose goods

After installing wooden boards, steel grating, and steel layer boards, small and heavy parts can also be stored, making it versatile and eliminating the need for additional dedicated shelves, reducing the investment in enterprise storage equipment.

3、 Single/double-sided options, suitable for different warehouse layouts

Cantilever shelves support two layouts, which can be flexibly selected according to the actual warehouse area and layout:

Single sided type: placed against the wall, saving passage, suitable for edge warehouses and wall areas, maximizing the use of warehouse corner space

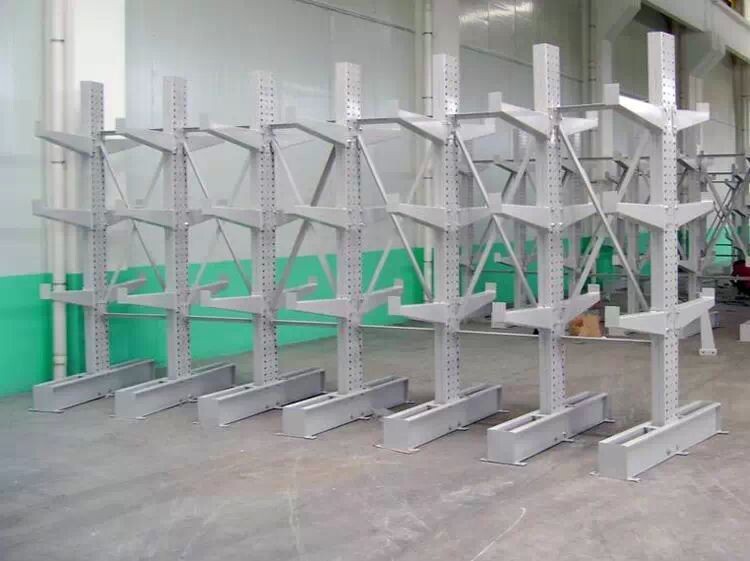

Double sided type: placed in the middle, both sides can be picked up, with higher storage density, suitable for the central channel, and improves the efficiency of goods storage and retrieval

4、 Adjustable floor height, suitable for different goods

In order to adapt to long and heavy materials of different heights and specifications, the height of cantilever shelves supports precise and flexible adjustment, and different series meet different adjustment needs:

Conventional type: adjustable up and down with a step distance of 100mm, suitable for conventional long and medium-sized building materials

H-type heavy-duty: Adjust up and down with a step distance of 101.6mm to accurately match the size requirements of heavy-duty pipes and large profiles

No need to waste space on fixed floor heights, all kinds of goods can find suitable storage heights.

5、 Classified by load-bearing capacity: lightweight, medium weight, and heavy weight

According to their load-bearing capacity, cantilever shelves are uniformly divided into three categories. Both conventional and H-type heavy-duty shelves have corresponding specifications, accurately matching the load-bearing needs of different industries and goods:

Lightweight type: suitable for lighter long strip materials and small profiles, suitable for small hardware processing stores

Medium size type: suitable for conventional hardware, pipes, and medium-sized building materials, it is the preferred choice for building material supermarkets and small and medium-sized mechanical processing factories

Weight type: Suitable for heavy-duty pipes, large profiles, and heavy-duty components, meeting the heavy-duty warehousing needs of industries such as heavy machinery processing and wood processing

6、 H-type cantilever rack: the preferred choice for heavy material storage

For the pain points of heavy material storage in industries such as heavy machinery processing and wood, H-type cantilever shelves are an exclusive solution, with the core advantage of having a much greater load-bearing capacity than ordinary rolled cantilever shelves.

After installing steel laminates or steel grilles, it can stably store various heavy loose goods, with a stronger overall structure that can easily meet the high requirements of heavy warehousing. It has become a standard choice for heavy machinery processing, wood processing, and large pipe and profile warehousing.

7、 Which industries are most suitable for using cantilever shelves?

With excellent adaptability and practicality, cantilever shelves have become a storage necessity in multiple industries, especially suitable for:

Mechanical processing industry (storage of various profiles and components)

Building materials supermarket/building materials warehouse (storage of pipes, boards, and building materials)

Wood and board processing industry (storage of logs, boards, and wooden blocks)

Pipe, profile, and hardware processing industry (storage of various long materials and irregular parts)

As long as there are long materials, irregular items, and heavy loose items that are difficult to place in your warehouse, cantilevered shelves can significantly improve the cleanliness, safety, and work efficiency of the warehouse.

As the largest steel shelving production base in China, Kingmore Racking has a professional design, production, and installation team. With 20 years of industry accumulation, Kingmore Racking has built cantilevered shelving that has not only passed international authoritative certification, but also has comprehensive after-sales support. It has solved the problem of long silo storage for many enterprises around the world. Choose the right cantilever shelves to make long and heavy material storage more efficient!
